Custom hotel furniture rarely fails because a factory cannot make a table, bed or wardrobe. Problems usually begin earlier, when a design concept is sent to production without enough technical confirmation.

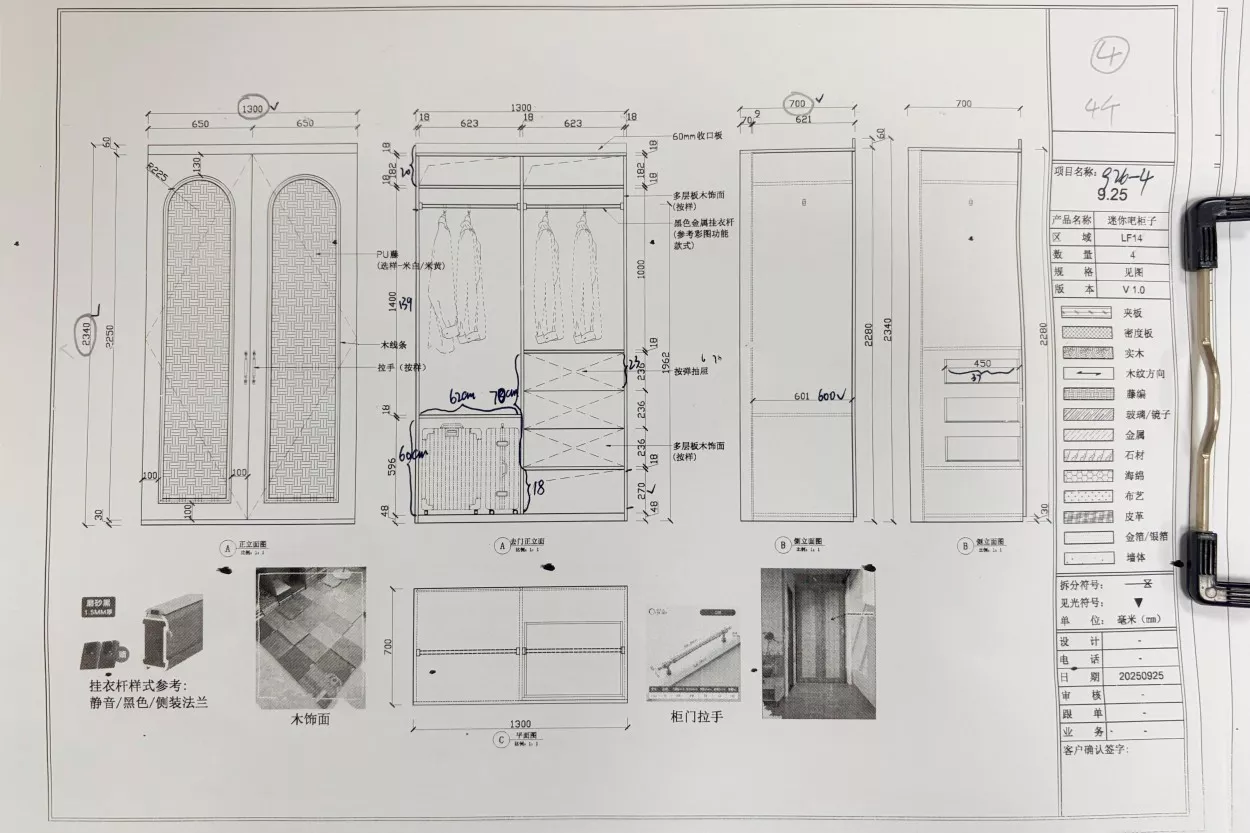

That is why hotel furniture shop drawings matter. They convert a visual design into dimensions, materials, construction details and installation requirements that a factory, contractor and project team can all follow. For a hotel furniture manufacturer, this is the point where an approved design becomes a controlled production instruction.

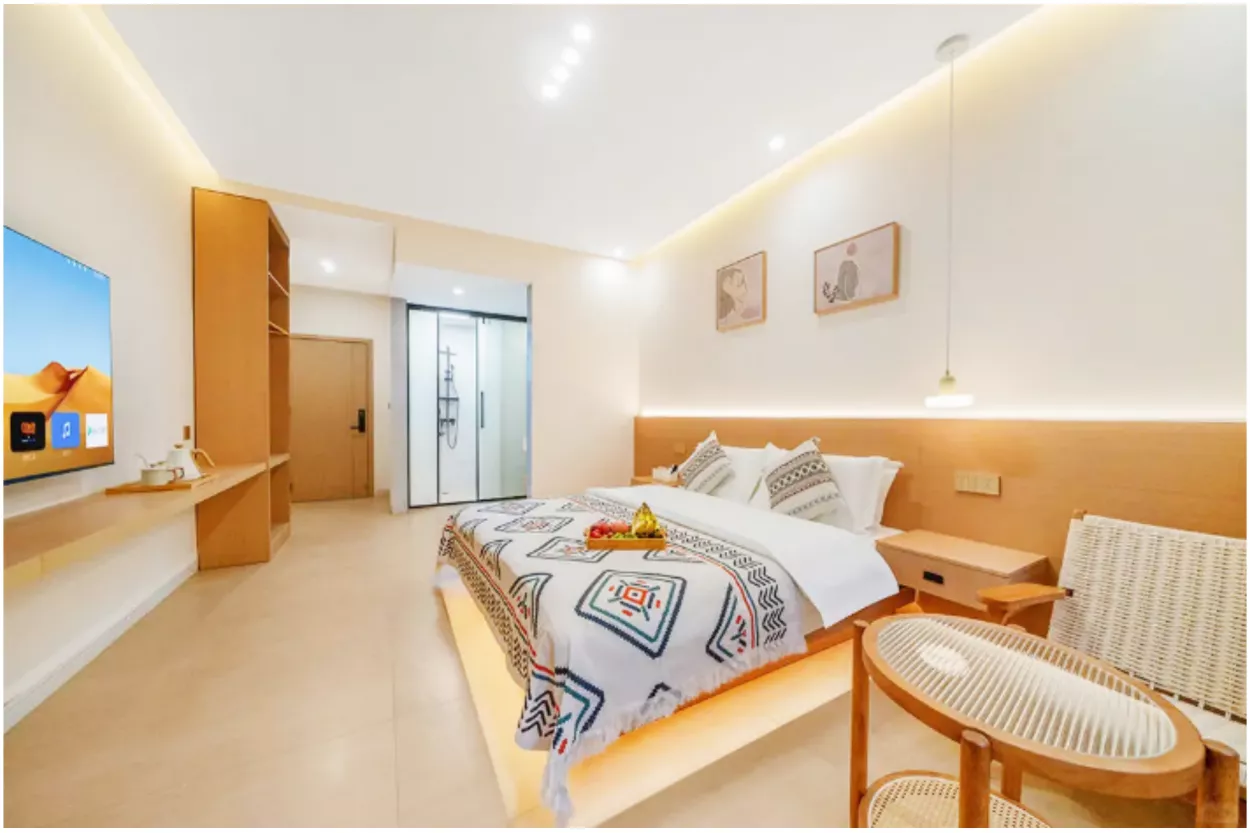

A rendering may show the intended atmosphere of a guest room, lobby or restaurant. It does not always show how deep a wardrobe should be, where a bedside power outlet will sit, how a headboard connects to the wall, or whether a drawer can open fully beside a bed.
A complete hotel furniture shop drawing should answer those questions before cutting boards, ordering fabric or starting metal fabrication. At STL Hotel Furnishing, drawings are reviewed as a production document, not simply as a formality before manufacturing.
Confirm the actual site dimensions.
Design dimensions and site dimensions are not always identical. Wall finishes, floor build-up, skirting, columns, beams and service openings can all affect the final furniture size. Built-in furniture should be based on confirmed site conditions wherever possible.
Check overall dimensions and functional clearances.
A product can look correct on paper but still create problems in use. Door opening direction, drawer travel, chair movement, bedside-table height, wardrobe access and luggage clearance should all be checked before approval.

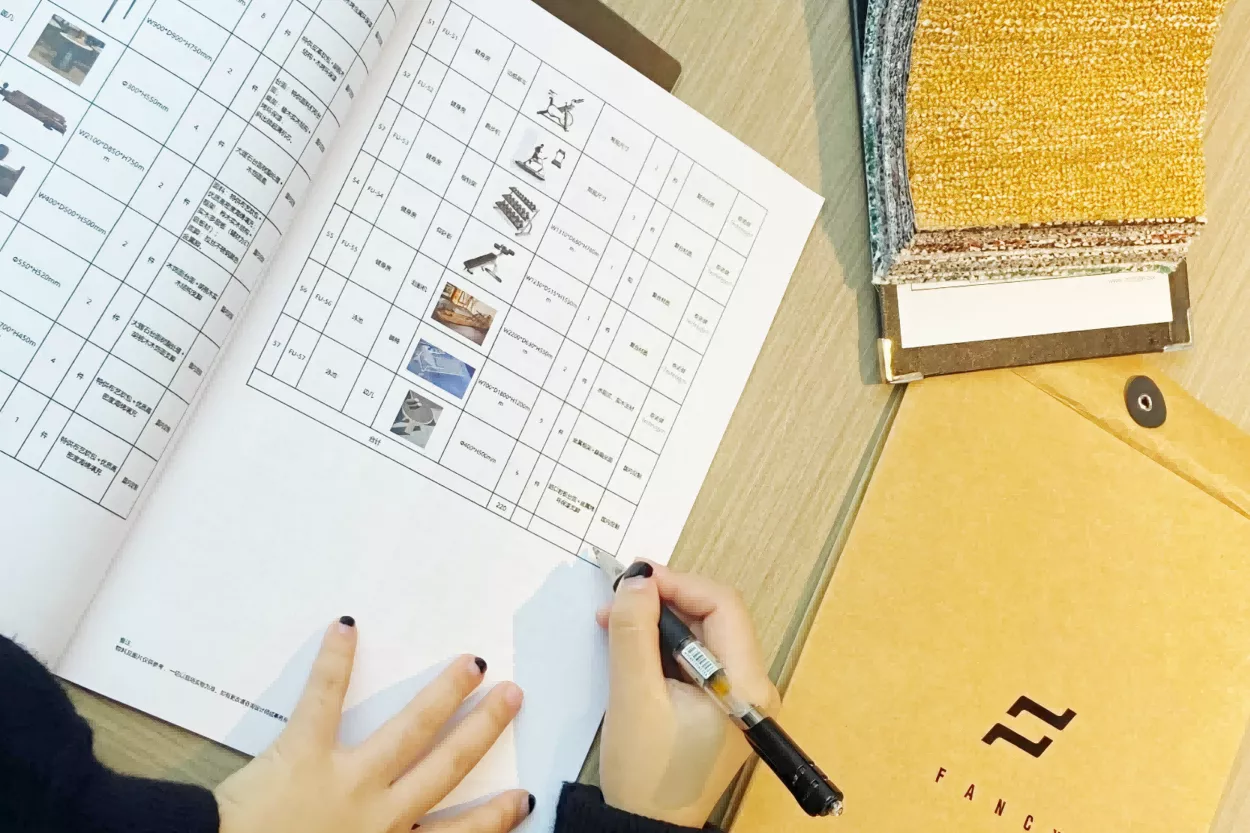

Lock the material and finish references.
“Oak colour,” “grey fabric” or “black metal” is not enough for production. The drawing should identify the approved veneer, laminate, fabric code, metal finish, stone, edge treatment and gloss level. Physical samples remain important where colour matching is critical.
Define visible construction details.
Small details often change the final impression of a room. Edge bands, shadow gaps, metal trims, stitching lines, handle positions, grain direction and panel joints should be shown clearly. These details are often missed when a factory works only from a rendering.
Confirm hardware and technical functions.
Hinges, drawer runners, soft-close systems, locks, cable holes, ventilation grilles, integrated lighting and power cut-outs need to be specified early. A hotel furniture factory cannot select the correct solution if the intended function is not shown.
Coordinate furniture with walls, electrical points and other trades.
Headboards, TV walls, vanities and reception counters often connect with electrical outlets, lighting, mirrors, wall panels or plumbing points. The drawing should show these interfaces clearly so furniture does not arrive on site with conflicting positions.

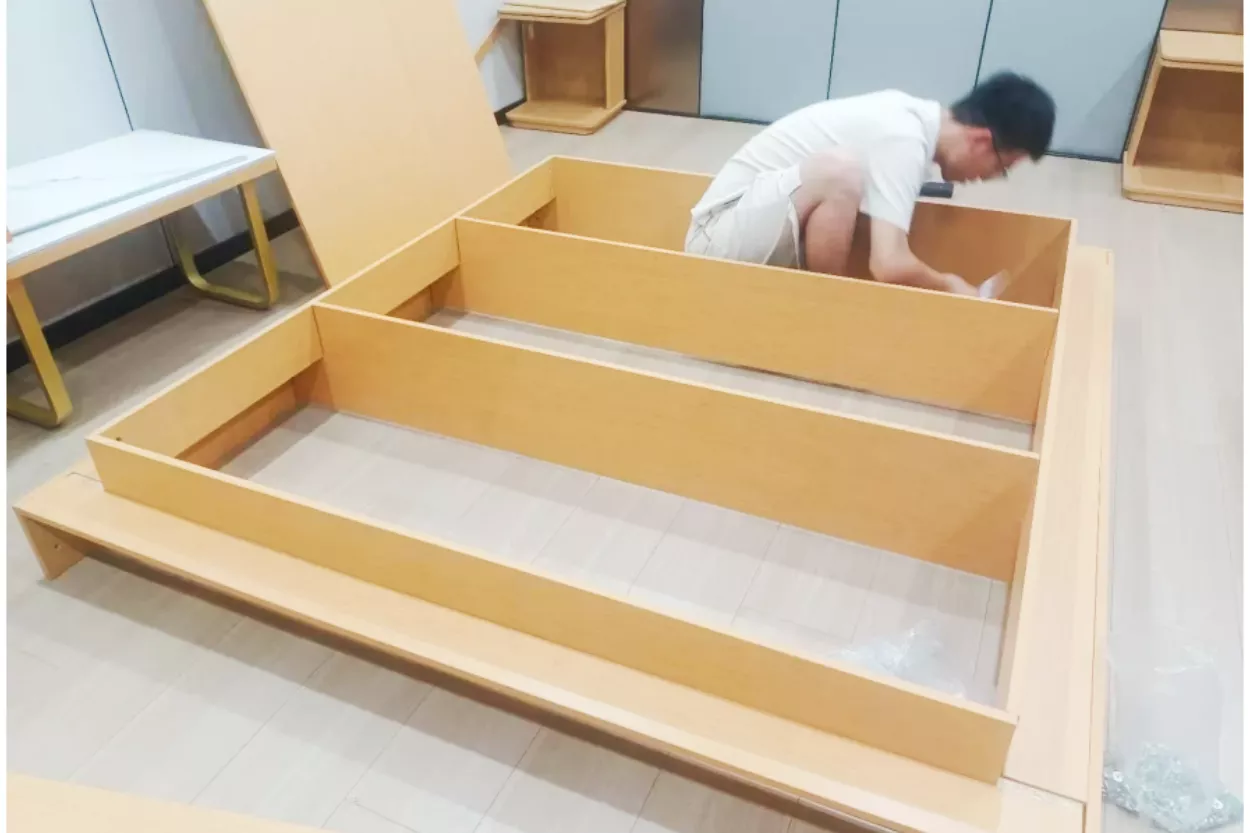

Confirm fixing methods and installation conditions.
Built-in furniture may require wall fixing, concealed brackets, floor levelling, access panels or reinforcement behind finishes. The installation method should be considered before production, especially for large headboards, wall panels, wardrobes and reception desks.
Control room types, revisions and final approval.
Hotels often have several room types, mirrored layouts and small variations between floors. Each furniture item must match the correct room type and latest revision. A controlled drawing register prevents an old drawing from being released to production by mistake.
Late changes are expensive because they affect more than one product. A revised headboard may change the bedside tables, wall panels, electrical cut-outs and installation sequence. A wardrobe adjustment may affect room clearance, skirting details and site fixing points.
For this reason, STL Hotel Furnishing recommends approving the main shop drawing package before bulk material purchasing begins. This gives the project team a clearer point to confirm dimensions, finishes and responsibilities before production moves forward.
A drawing package is essential, but it is not a substitute for coordination. The best results come when the hotel owner, designer, contractor and manufacturer use the drawings to resolve open questions early instead of waiting for the goods to arrive on site.
For custom hotel furniture projects, the goal is not simply to make each item look close to a rendering. The goal is to produce furniture that fits the room, functions properly, installs smoothly and remains consistent across every room type.
As a hotel furniture manufacturer in China, STL Hotel Furnishing supports project teams with production-oriented shop drawing review, material confirmation and pre-production coordination for guest rooms, public areas and restaurant furniture packages.
Good production starts with a clear drawing. The earlier the details are confirmed, the fewer surprises a hotel project will face later.
